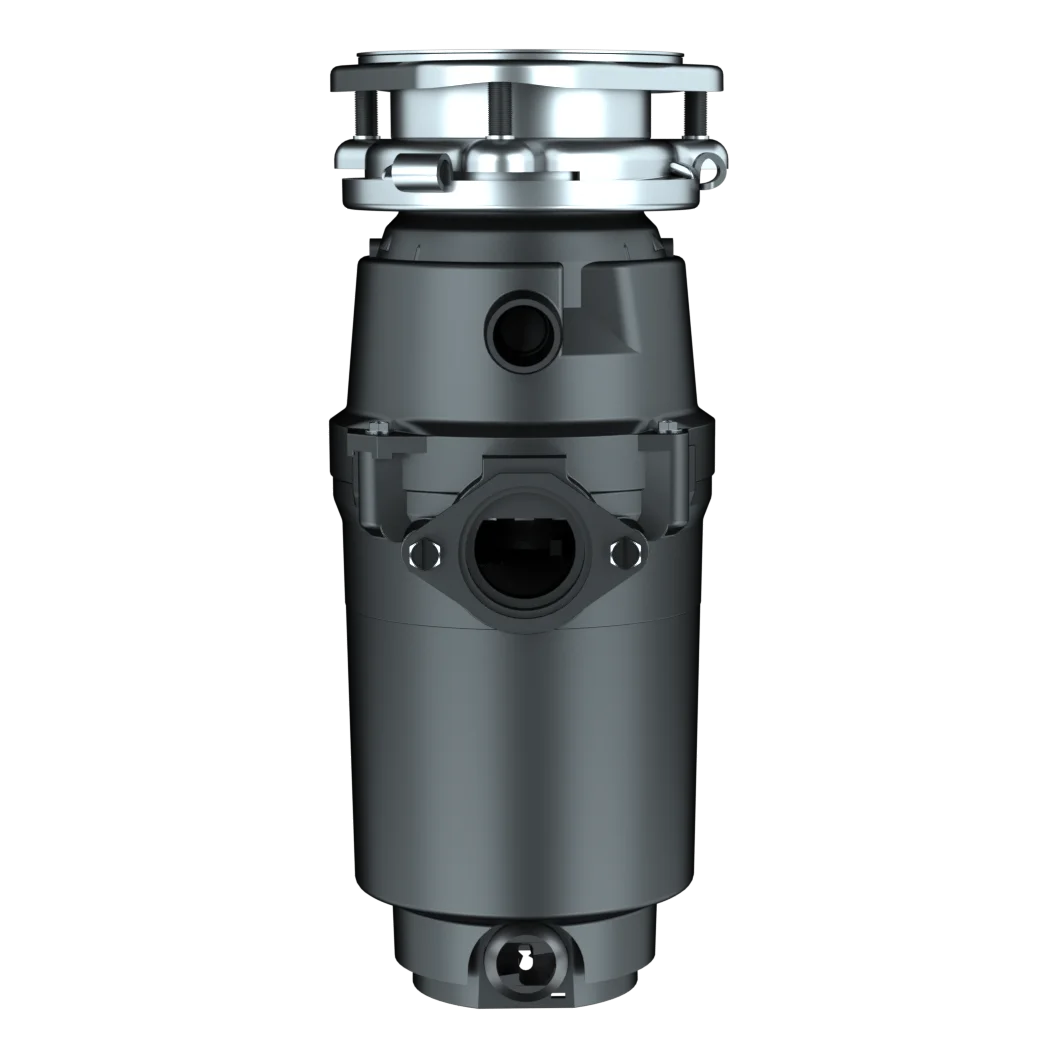

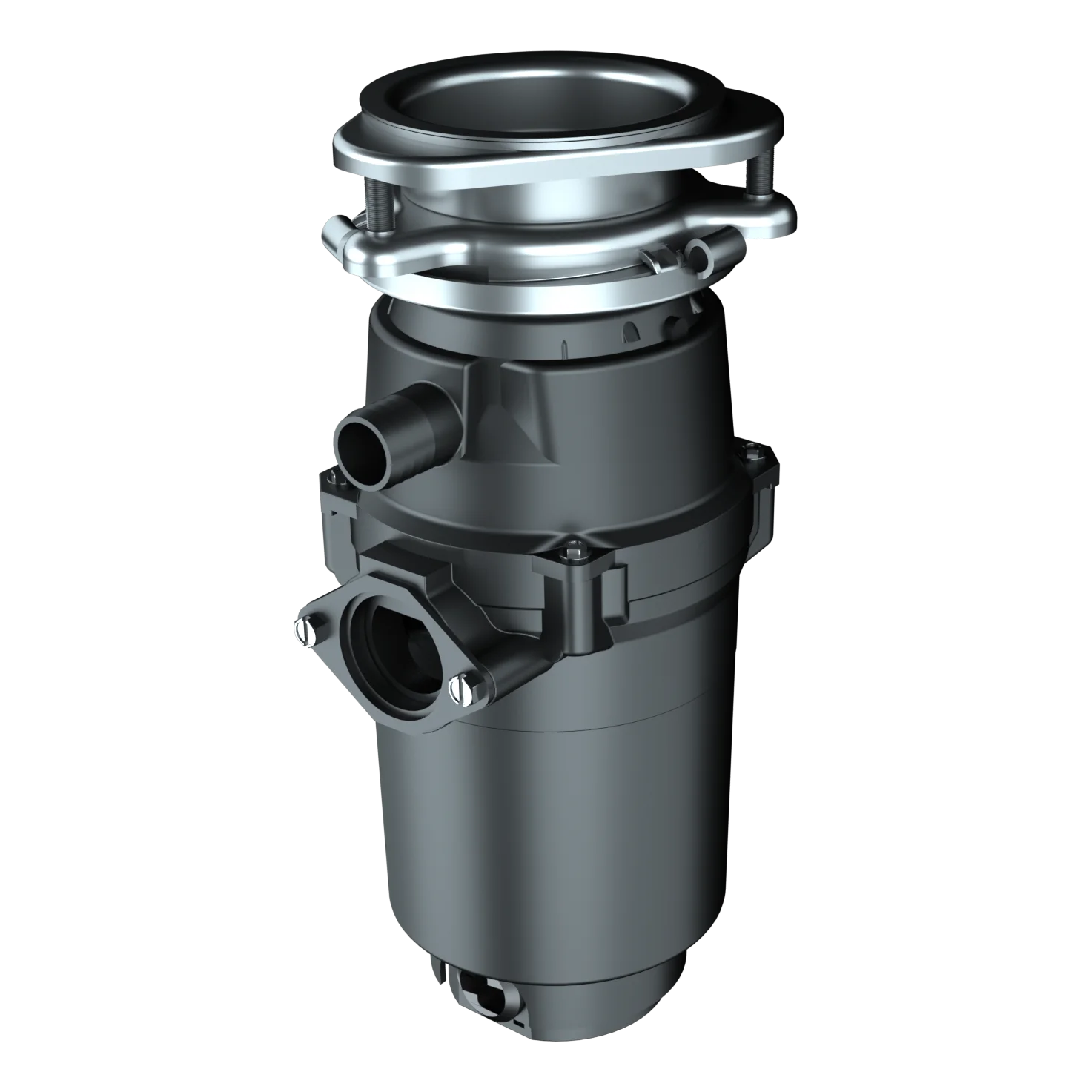

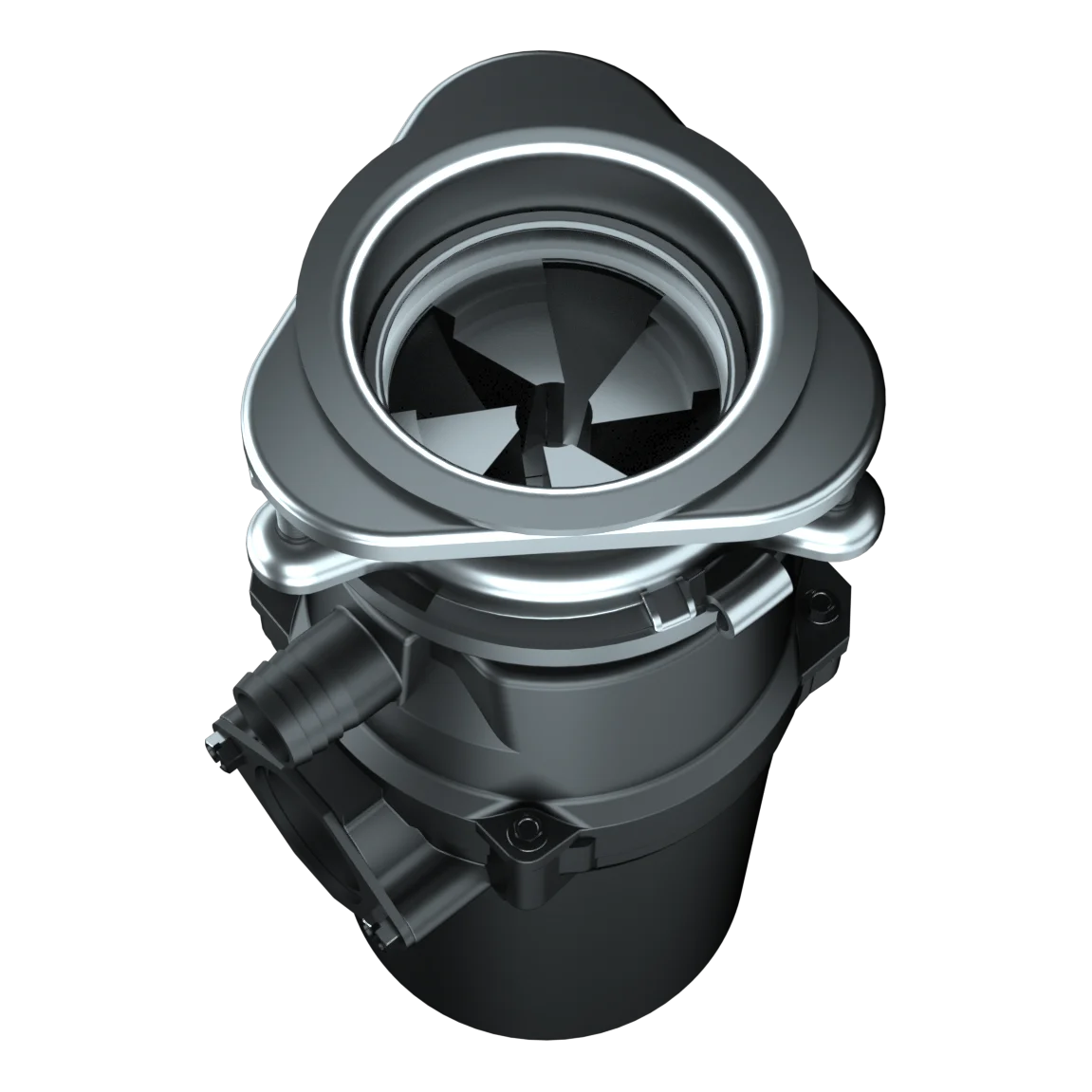

Wasteclean 0.5Hp 370w Food Waste Machine Kitchen Air Switch Food Waste Disposer,EZ Mount Flange SYS
Other recommendations
Overview
Video Description
Our Company
ZAL Intelligent Home Appliance Co., Ltd.
● 16 years professional R&D
● Covering 5000+ meter square ,With 3 professional assembly production lines
● Experienced in OEM/ODM business
● Production 200K units per year
● More than 50 patents
● Approved by ISO9001,CE,CB,ETL,CQC
＞＞＞ Infastructure-work plant
Manufactruing
Producing line:200K/year
Warehouse
Riveting machine:Riveting turntable ASM
Dynamic balancing machine:Turntable ASM
＞＞＞ Infastructure-work plant
On-line Inspection
Six in one safety tester
Vacuum air tightness tester
Overload protector test
Electric parameter detector
GND-Resistance Tester
Withstand voltage tester
＞＞＞ Infastructure-Laboratory
Performance
▪ Grinding Rate Test(AHAM FWD-1-2009 6.3.1)
▪ Bone Grinding Test(AHAM FWD-1-2009 6.3.2.1)
▪ Mixed Load Test(AHAM FWD-1-2009 6.3.3.3)
▪ Citrus Rind Test(AHAM FWD-1-2009 6.3.3.2)
▪ Fineness Test(AHAM FWD-1-2009 6.3.2)
＞＞＞ Infastructure-Laboratory
Electrical test
＞＞＞ Infastructure-Laboratory
Life test - 10 Year(250 'ON' Hours)Reliability Test
＞＞＞ Infastructure-Laboratory
Environment test
Humidity Chamber
Glow Wire Tester
Shaking Table
High temperature test chamber
Product Paramenters

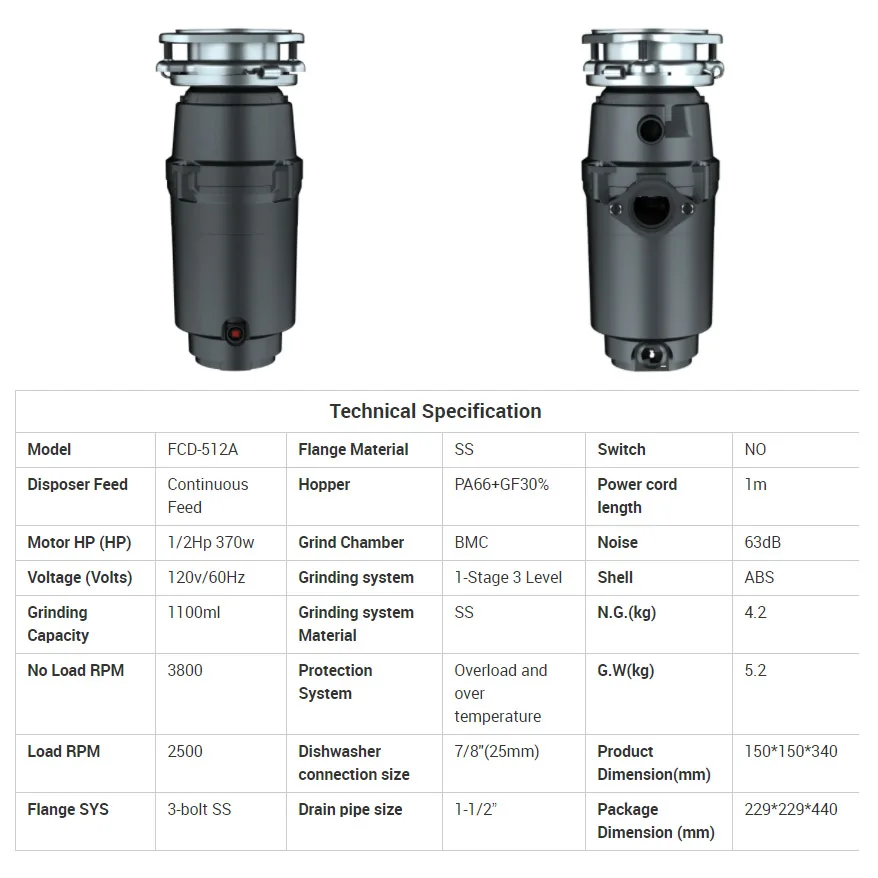

Technical Specification | ||||||||||
Model | FCD-512A | Flange Material | SS | Switch | NO | |||||
Disposer Feed | Continuous Feed | Hopper | PA66+GF30% | Power cord length | 1m | |||||
Motor HP (HP) | 1/2Hp 370w | Grind Chamber | BMC | Noise | 63dB | |||||
Voltage (Volts) | 120v/60Hz | Grinding system | 1-Stage 3 Level | Shell | ABS | |||||
Grinding Capacity | 1100ml | Grinding system Material | SS | N.G.(kg) | 4.2 | |||||
No Load RPM | 3800 | Protection System | Overload and over temperature | G.W(kg) | 5.2 | |||||
Load RPM | 2500 | Dishwasher connection size | 7/8"(25mm) | Product Dimension(mm) | 150*150*340 | |||||
Flange SYS | 3-bolt SS | Drain pipe size | 1-1/2” | Package Dimension (mm) | 229*229*440 | |||||
Details Images
Patent Sound Insulation Splash Guard
Dishwasher Interface
Overload And Over Temperature

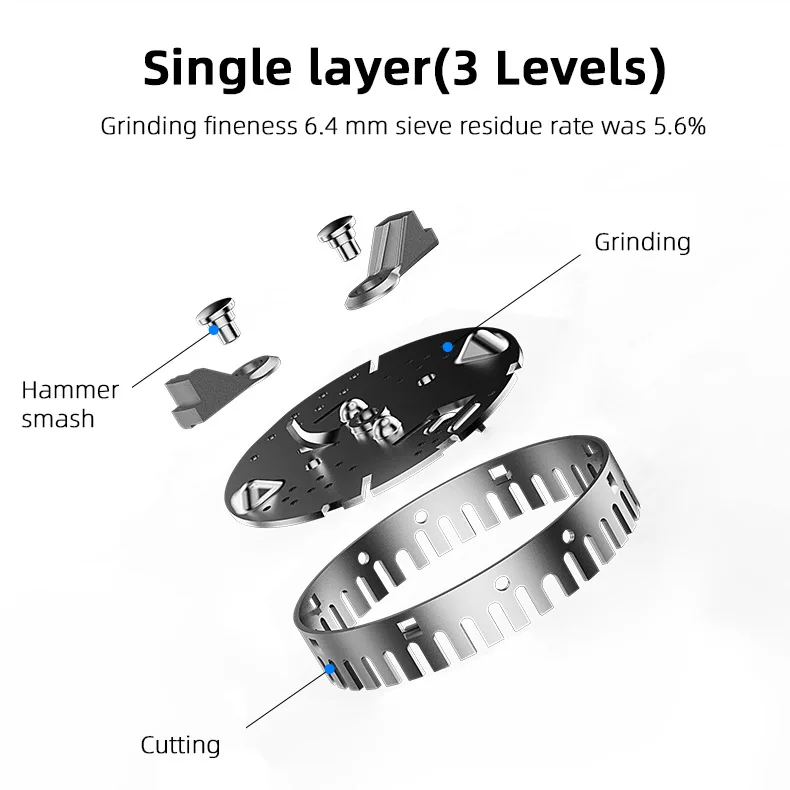

Single Layer Grind(3 Level)
Packaging & Shipping
Certifications
More than 50 patents and Approved by ISO9001,CE,CB,ETL,CQC.
Exhibition
FAQ
Q: May I have samples?
A: Yes, of course. Sample cost can be refunded if you place formal orders in the future. You just need to tell me consignee’s contact information and courier account Number. If you don’t have a courier account, we 'll calculate for you, freight prepaid.
Q:Can you change the funtion or change apperance for me?
A: Yes, of course if you can provide us detailed specification or drawing to us.
Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style of product are customized.
Q: What’s your MOQ?
A: Normally, 500sets/item. We also warm welcome any trial order whose QTY less is than our MOQ. If you have a trial order also welcome to tell me.
Q: When’s your delivery time?
A: Generally, 1-5 working days for existing samples, within 35 days for mass production.
