Own Patent Silent Design 3-Level Household Grinding Garbage Disposal American Standard No Switch Kitchen Food Waste Disposer
Other recommendations
Customization
color
Min. order: 300
Horsepower
Min. order: 1
Overview
Video Description
Product Paramenters
|

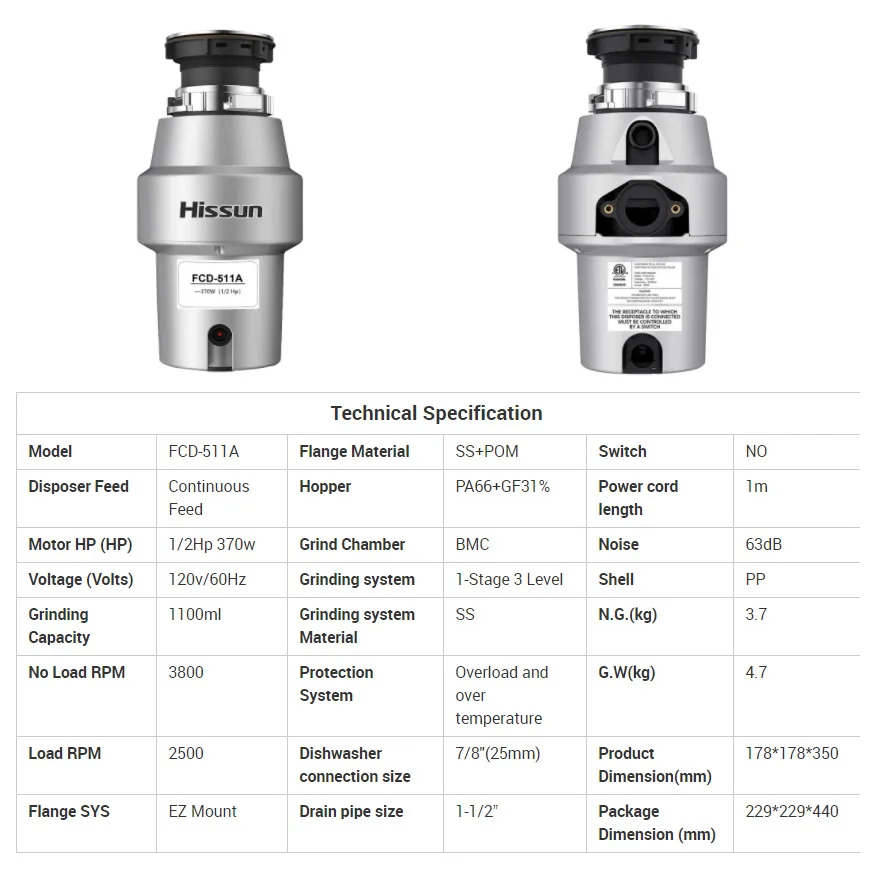

Technical Specification
|
||||||||||
|
Model
|
FCD-511A
|
Flange Material
|
SS+POM
|
Switch
|
NO
|
|||||
|
Disposer Feed
|
Continuous Feed
|
Hopper
|
PA66+GF31%
|
Power cord length
|
1m
|
|||||
|
Motor HP (HP)
|
1/2Hp 370w
|
Grind Chamber
|
BMC
|
Noise
|
63dB
|
|||||
|
Voltage (Volts)
|
120v/60Hz
|
Grinding system
|
1-Stage 3 Level
|
Shell
|
PP
|
|||||
|
Grinding Capacity
|
1100ml
|
Grinding system Material
|
SS
|
N.G.(kg)
|
3.7
|
|||||
|
No Load RPM
|
3800
|
Protection System
|
Overload and over temperature
|
G.W(kg)
|
4.7
|
|||||
|
Load RPM
|
2500
|
Dishwasher connection size
|
7/8"(25mm)
|
Product Dimension(mm)
|
178*178*350
|
|||||
|
Flange SYS
|
EZ Mount
|
Drain pipe size
|
1-1/2”
|
Package Dimension (mm)
|
229*229*440
|
|||||
Details Images
Overload And Over Temperature
Patent Sound Insulation Splash Guard
Dishwasher Interface
Grinding System
Single Layer(3 Level) Grind
Packaging & Shipping
Installation Instructions
1.There should be a power outlet under the sink. 2.sink drain inner diameter 90mm, outer diameter 110mm can be directly installed, outer diameter 140, 160, 180, 185mm need to install a reducer. 3.ensure that there is enough space under the stage to install garbage disposal; The sewer opening must be lower than the outlet of the machine (the sewer opening on the ground need not be measured, the wall need to be measured).
Certifications
More than 50 patents and Approved by ISO9001,CE,CB,ETL,CQC.

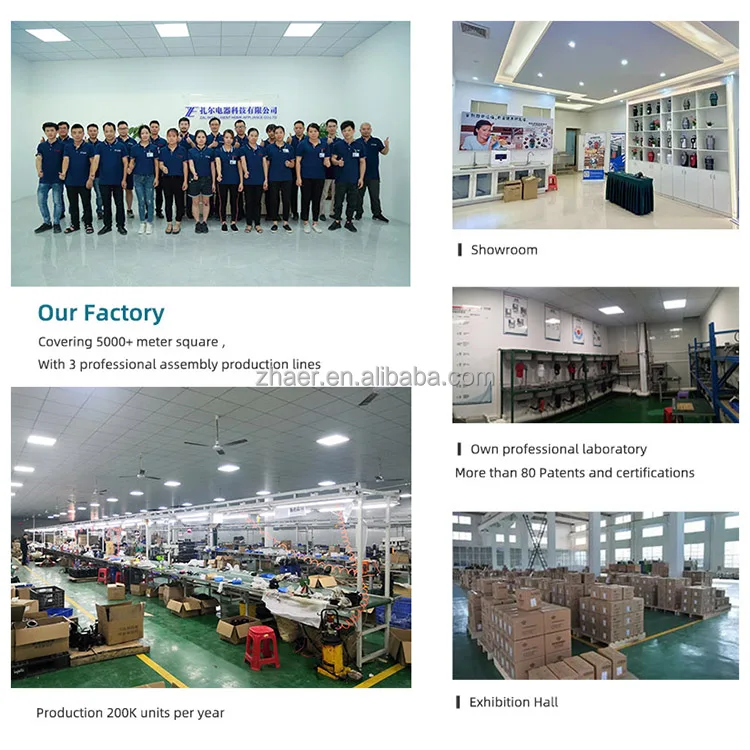

Our Company
FAQ
Q: May I have samples?
A: Yes, of course. Sample cost can be refunded if you place formal orders in the future. You just need to tell me consignee’s contact information and courier account Number. If you don’t have a courier account, we 'll calculate for you, freight prepaid.
Q:Can you change the funtion or change apperance for me?
A: Yes, of course if you can provide us detailed specification or drawing to us.
Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style of product are customized.
Q: What’s your MOQ?
A: Normally, 500sets/item. We also warm welcome any trial order whose QTY less is than our MOQ. If you have a trial order also welcome to tell me.
Q: When’s your delivery time?
A: Generally, 1-5 working days for existing samples, within 35 days for mass production.
