OEM ODM Wasteclean 1/2Hp 370w Wireless Switch 3 Level Grinding System Disposer 220v Food Waste Shredder
Other recommendations
Customization
Customized logo
Min. order: 300
Customized packaging
Min. order: 500
Graphic customization
Min. order: 500
Overview
Video Description
Our Company
ZAL Intelligent Home Appliance Co., Ltd.
● 16 years professional R&D
● Covering 5000+ meter square ,With 3 professional assembly production lines
● Experienced in OEM/ODM business
● Production 200K units per year
● More than 50 patents
● Approved by ISO9001,CE,CB,ETL,CQC
＞＞＞ Infastructure-work plant
Manufactruing
Producing line:200K/year
Warehouse
Riveting machine:Riveting turntable ASM
Dynamic balancing machine:Turntable ASM
＞＞＞ Infastructure-work plant
On-line Inspection
Six in one safety tester
Vacuum air tightness tester
Overload protector test
Electric parameter detector
GND-Resistance Tester
Withstand voltage tester
＞＞＞ Infastructure-Laboratory
Performance
▪ Grinding Rate Test(AHAM FWD-1-2009 6.3.1)
▪ Bone Grinding Test(AHAM FWD-1-2009 6.3.2.1)
▪ Mixed Load Test(AHAM FWD-1-2009 6.3.3.3)
▪ Citrus Rind Test(AHAM FWD-1-2009 6.3.3.2)
▪ Fineness Test(AHAM FWD-1-2009 6.3.2)
＞＞＞ Infastructure-Laboratory
Electrical test
＞＞＞ Infastructure-Laboratory
Life test - 10 Year(250 'ON' Hours)Reliability Test
＞＞＞ Infastructure-Laboratory
Environment test
Humidity Chamber
Glow Wire Tester
Shaking Table
High temperature test chamber
Product Paramenters
|

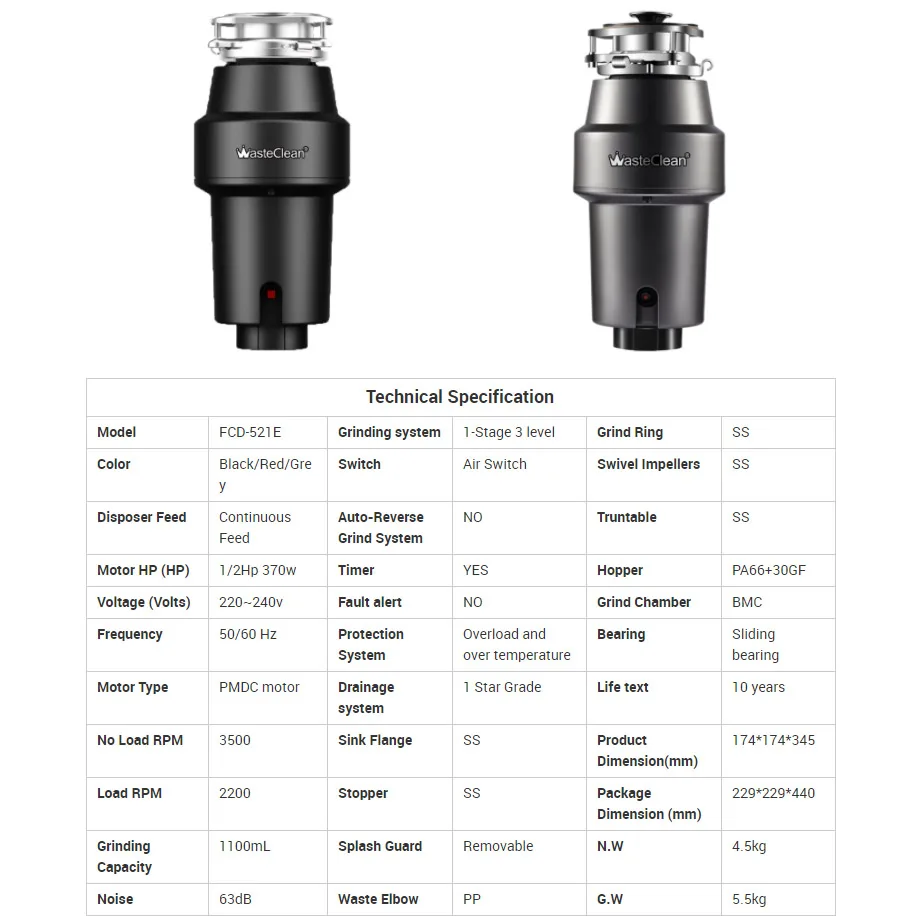

Technical Specification
|
||||||||||
|
Model
|
FCD-521E
|
Grinding system
|
1-Stage 3 level
|
Grind Ring
|
SS
|
|||||
|
Color
|
Black/Red/Grey
|
Switch
|
Air Switch
|
Swivel Impellers
|
SS
|
|||||
|
Disposer Feed
|
Continuous Feed
|
Auto-Reverse Grind System
|
NO
|
Truntable
|
SS
|
|||||
|
Motor HP (HP)
|
1/2Hp 370w
|
Timer
|
YES
|
Hopper
|
PA66+30GF
|
|||||
|
Voltage (Volts)
|
220~240v
|
Fault alert
|
NO
|
Grind Chamber
|
BMC
|
|||||
|
Frequency
|
50/60 Hz
|
Protection System
|
Overload and over temperature
|
Bearing
|
Sliding bearing
|
|||||
|
Motor Type
|
PMDC motor
|
Drainage system
|
1 Star Grade
|
Life text
|
10 years
|
|||||
|
No Load RPM
|
3500
|
Sink Flange
|
SS
|
Product Dimension(mm)
|
174*174*345
|
|||||
|
Load RPM
|
2200
|
Stopper
|
SS
|
Package Dimension (mm)
|
229*229*440
|
|||||
|
Grinding Capacity
|
1100mL
|
Splash Guard
|
Removable
|
N.W
|
4.5kg
|
|||||
|
Noise
|
63dB
|
Waste Elbow
|
PP
|
G.W
|
5.5kg
|
|||||
Details Images
Stainless Steel Flange
Dishwasher Interface
Overload And Over Temperature

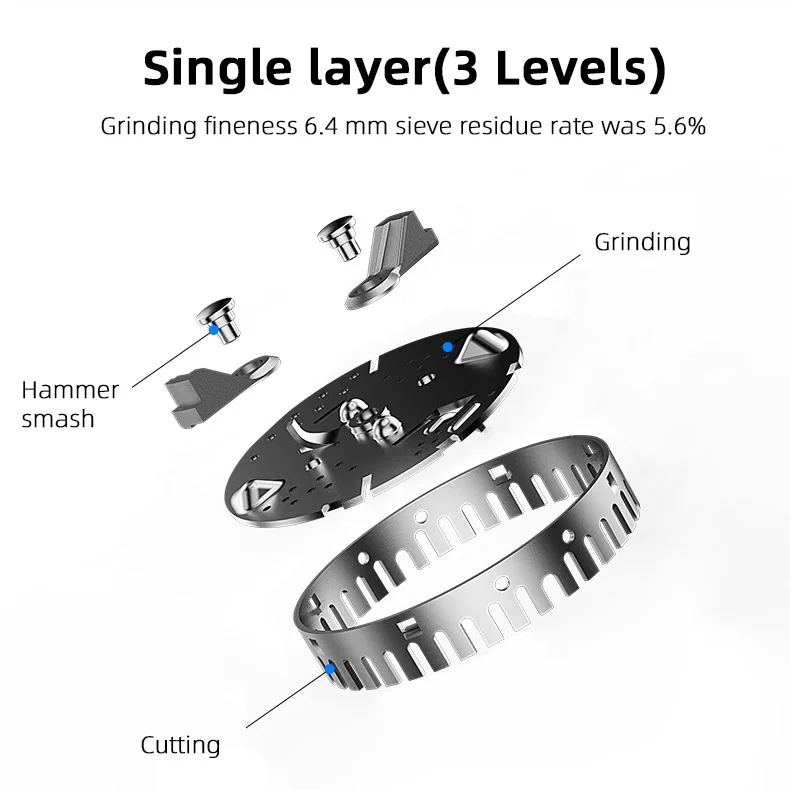

Single Layer(3 Level)
Packaging & Shipping
Certifications
More than 50 patents and Approved by ISO9001,CE,CB,ETL,CQC.
Exhibition
FAQ
Q: May I have samples?
A: Yes, of course. Sample cost can be refunded if you place formal orders in the future. You just need to tell me consignee’s contact information and courier account Number. If you don’t have a courier account, we 'll calculate for you, freight prepaid.
Q:Can you change the funtion or change apperance for me?
A: Yes, of course if you can provide us detailed specification or drawing to us.
Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style of product are customized.
Q: What’s your MOQ?
A: Normally, 500sets/item. We also warm welcome any trial order whose QTY less is than our MOQ. If you have a trial order also welcome to tell me.
Q: When’s your delivery time?
A: Generally, 1-5 working days for existing samples, within 35 days for mass production.
